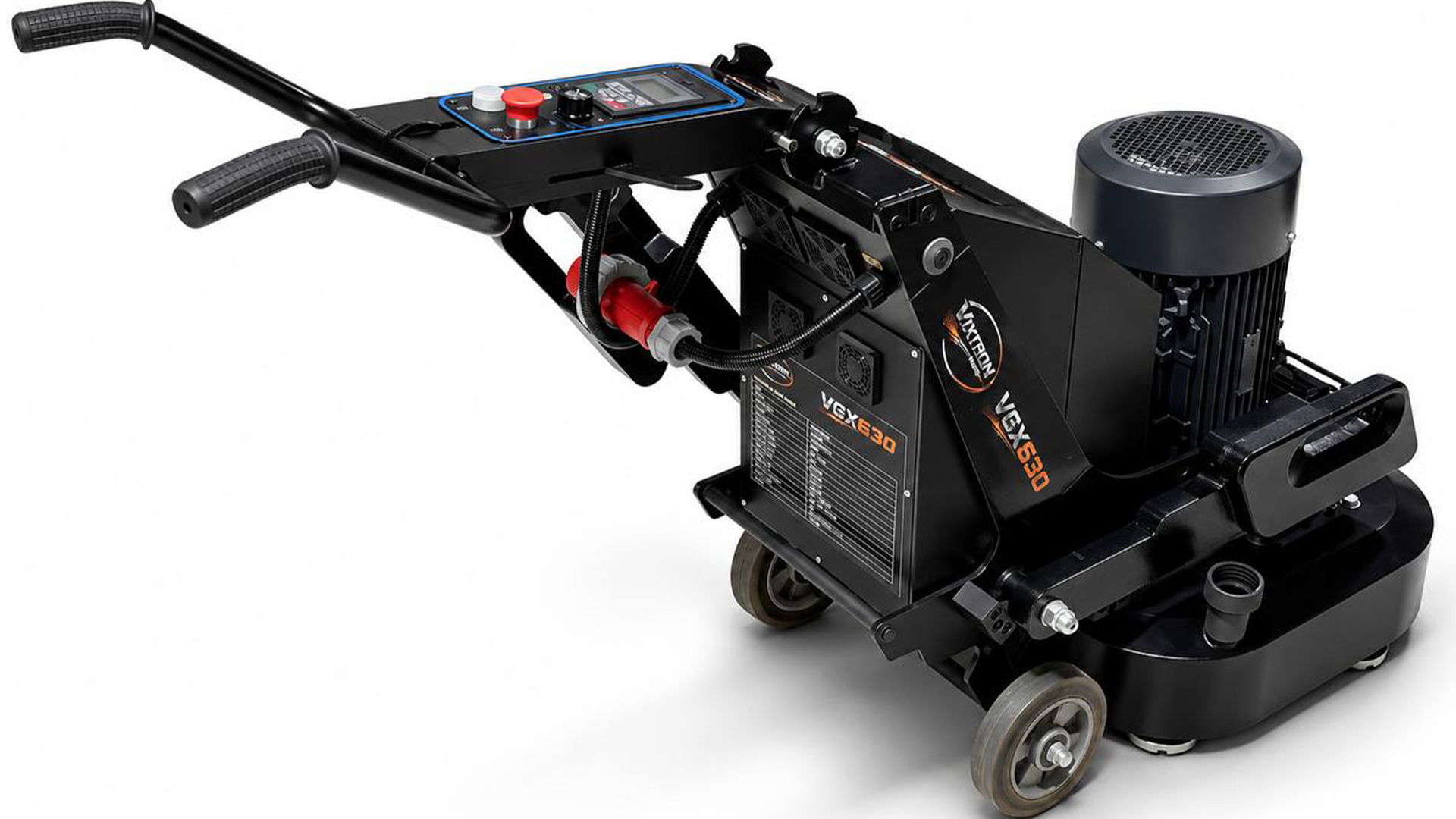

VGX630 Professional Floor Grinder
VGX630 Professional Floor Grinder
High-Performance Concrete Surface Preparation System
The VIXTRONequip VFG630 is a heavy-duty floor grinding machine engineered for professional concrete grinding, coating removal, floor preparation, and renovation applications. Featuring a powerful 7.5 kW (10 HP) motor, four grinding heads, and twelve diamond grinding discs, the VGX630 delivers outstanding grinding efficiency, productivity, and durability for demanding construction and industrial environments.
Key Features
✔ Powerful 7.5 kW (10 HP) industrial motor

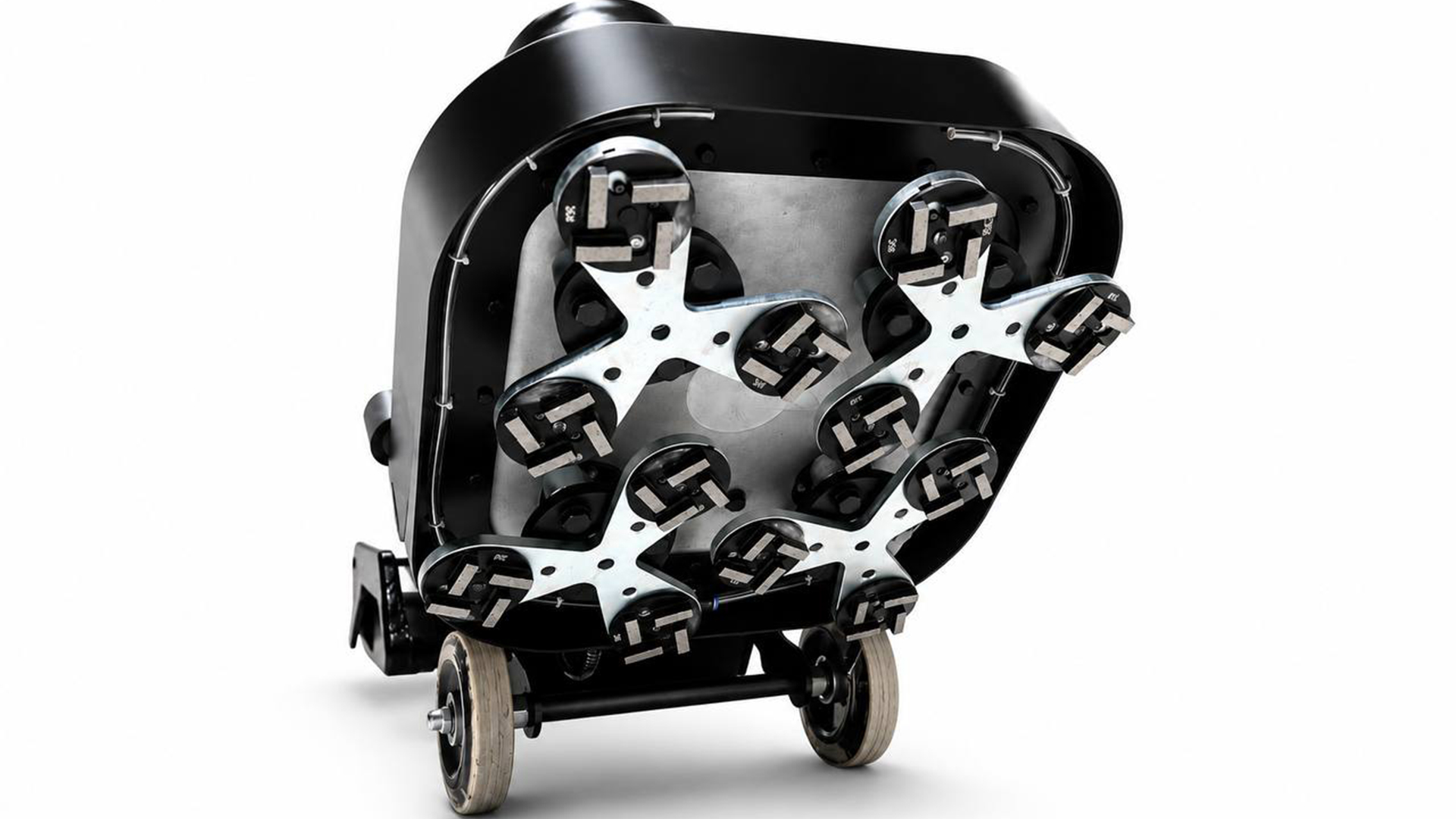

✔ Four-head grinding system for maximum surface coverage
✔ Twelve 4-inch diamond grinding discs
✔ Wide 630 mm grinding width
✔ Variable speed control (300–1500 rpm)
✔ Heavy-duty steel construction
✔ Suitable for dry and wet grinding applications
✔ Smooth and stable operation
✔ Industrial vacuum connection for dust extraction
✔ Easy maintenance and operation
✔ Ideal for large commercial and industrial projects
Technical Specifications
|
Item |
Specification |
|
Model |
VGX630 |
|
Motor Power |
7.5 kW (10 HP) |
|
Voltage |
380V |
|
Frequency |
50 / 60 Hz |
|
Rated Current |
15 A |
|
Grinding Width |
630 mm |
|
Grinding Heads |
4 Heads |
|
Grinding Discs |
12 Discs |
|
Disc Diameter |
4 inches |
|
Speed Range |
300 – 1500 rpm |
|
Application |
Dry / Wet Grinding |
|
Vacuum Connector |
Yes |
|
Drive System |
Variable Speed Inverter |
|
Weight |
285 kg |
Applications
- Concrete Floor Grinding
- Epoxy Coating Removal
- Surface Preparation
- Floor Leveling
- Industrial Floor Renovation
- Warehouse Floor Refurbishment
- Decorative Flooring Preparation
- Concrete Polishing Preparation
Advantages
The VGX630 combines powerful grinding performance, excellent stability, and long service life. Its four-head grinding design provides consistent grinding pressure and uniform surface finishing, while the wide grinding path significantly improves productivity on large floor areas.
Designed for contractors and flooring professionals, the VFG630 is the ideal solution for demanding concrete surface preparation and renovation projects.
VIXTRONequip
Where Technology Meets Construction
