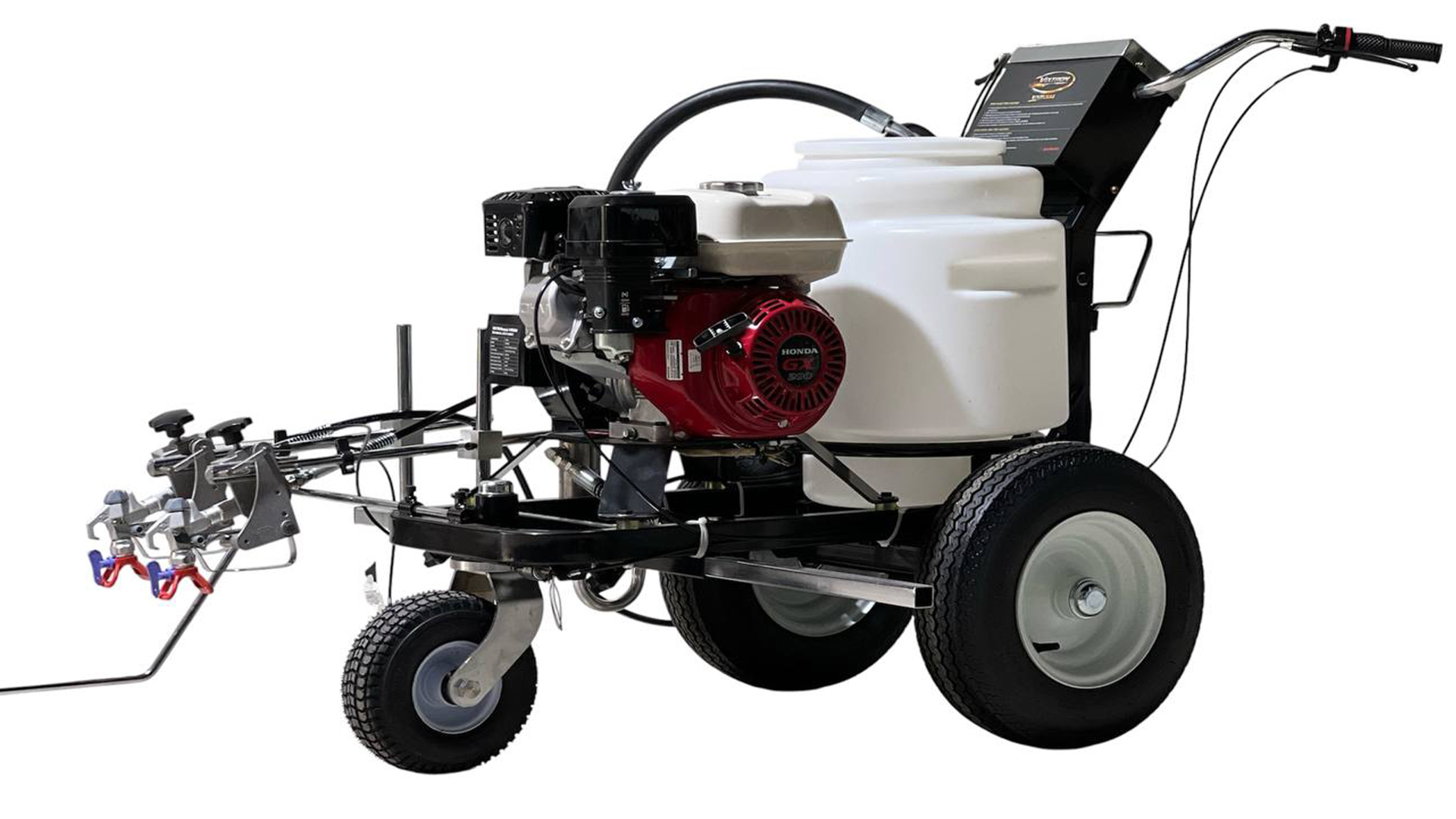

VXR200 Line marking machine

ENGINEERED FOR PROFESSIONAL ROAD MARKING PERFORMANCE

The VXR200 ELITE ROAD STRIPER is engineered for professional contractors who demand precision line control, high productivity, and long-term durability in road marking applications.

Powered by a reliable 5.5 HP HONDA GX200 engine and equipped with an industrial-grade airless piston pump, the VXR200 delivers stable high-pressure output, consistent spray performance and clean, sharp line definition across demanding striping environments.

Designed for single or dual-gun configuration, the system is ideal for parking lots, city streets, industrial zones, airports, and large commercial facilities.

PERFORMANCE HIGHLIGHTS

• 5.5 HP HONDA GX200 Engine – Reliable Gasoline Power

• Max Operating Pressure – 250 Bar

• Max Delivery Rate – 4.0 L/min

• Dual Gun Capability (1 or 2 Guns)

• Max Nozzle Size – 0.033" (Single Gun)

• Max Nozzle Size – 0.023" (Dual Gun)

• Heavy-Duty Industrial Frame

• Designed for Continuous Contractor Operation

APPLICATION RANGE

• Parking lot striping

• City road marking

• Airport runway markings

• Warehouse & industrial facilities

• Sports facilities & commercial zones

• Cold single-component paints (water & solvent based)

TECHNICAL DATA SHEET

Model:   VXR200

Engine:    5.5 HP HONDA GX200

Technology:    Airless Piston Pump

Max Operating Pressure:  230 Bar

Max Delivery Rate:  4.0 L/min

Max Nozzle (1 Gun):   0.031"

Max Nozzle (2 Guns):   0.021"

Dimensions (L×W×H):   112 × 74 × 87 cm

Weight:   98 kg

Drive Type:  Gasoline Engine
