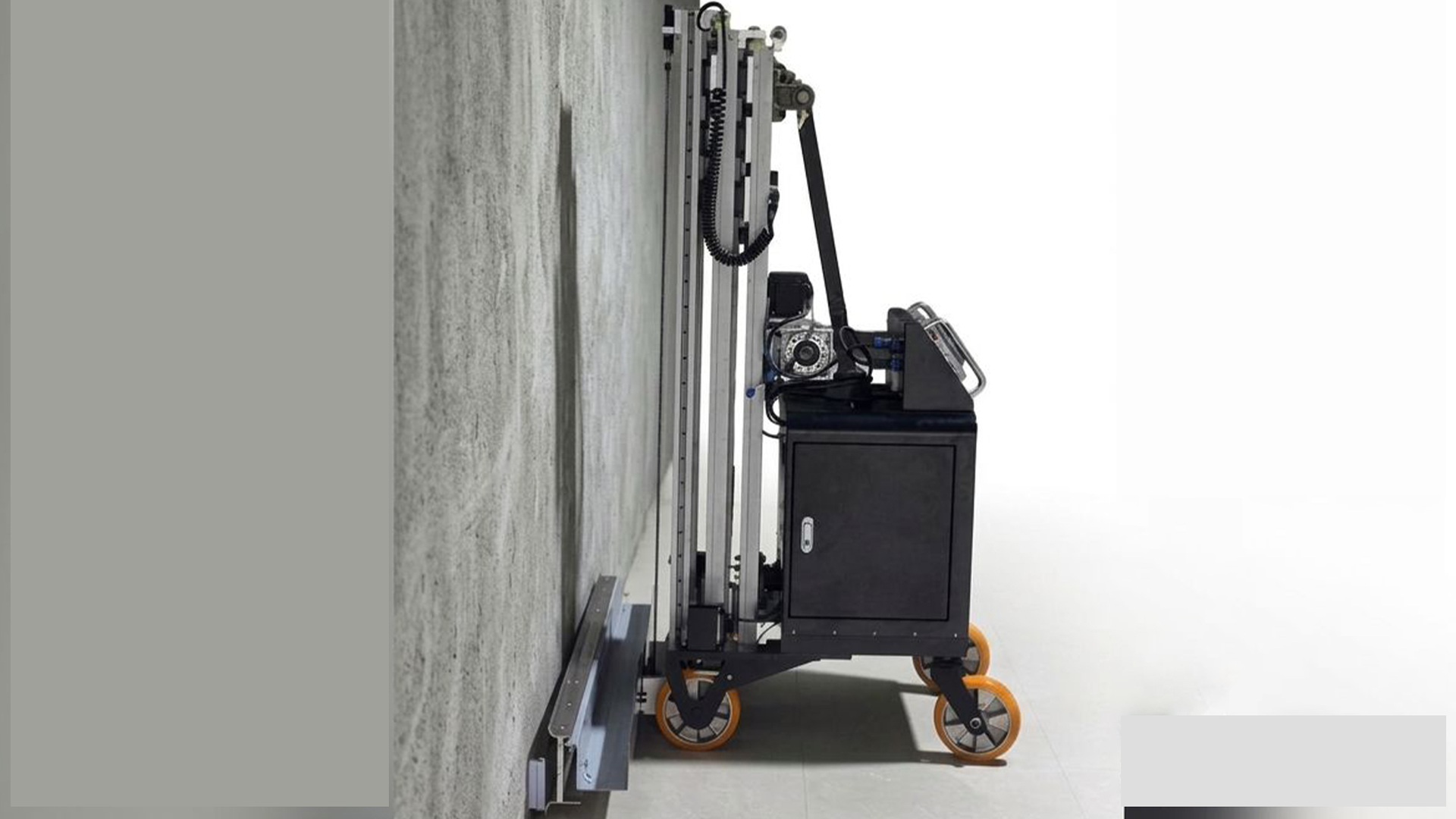

VWL400 Industrial Electric Smart Finishing Unit
ENGINEERED FOR PRECISION SURFACE CONTROL
The VIXTRONequip VWL400 is an advanced electric wall levelling system engineered to operate directly after mortar or plaster spray application.
Developed for modern construction workflows, the VWL400 transforms freshly sprayed surfaces into high-precision levelled finishes with controlled mechanical consistency and reduced manual correction.
By integrating intelligent motion control, servo-driven lifting mechanics and stabilized vertical guidance, the VWL400 ensures uniform flatness across large wall surfaces with repeatable accuracy.
CONTROL & AUTOMATION ARCHITECTURE
• Intelligent vertical leveling control algorithm
• Sensor-assisted electric cylinder angle correction
• DC48V 0.75 kW brushless servo lifting motor

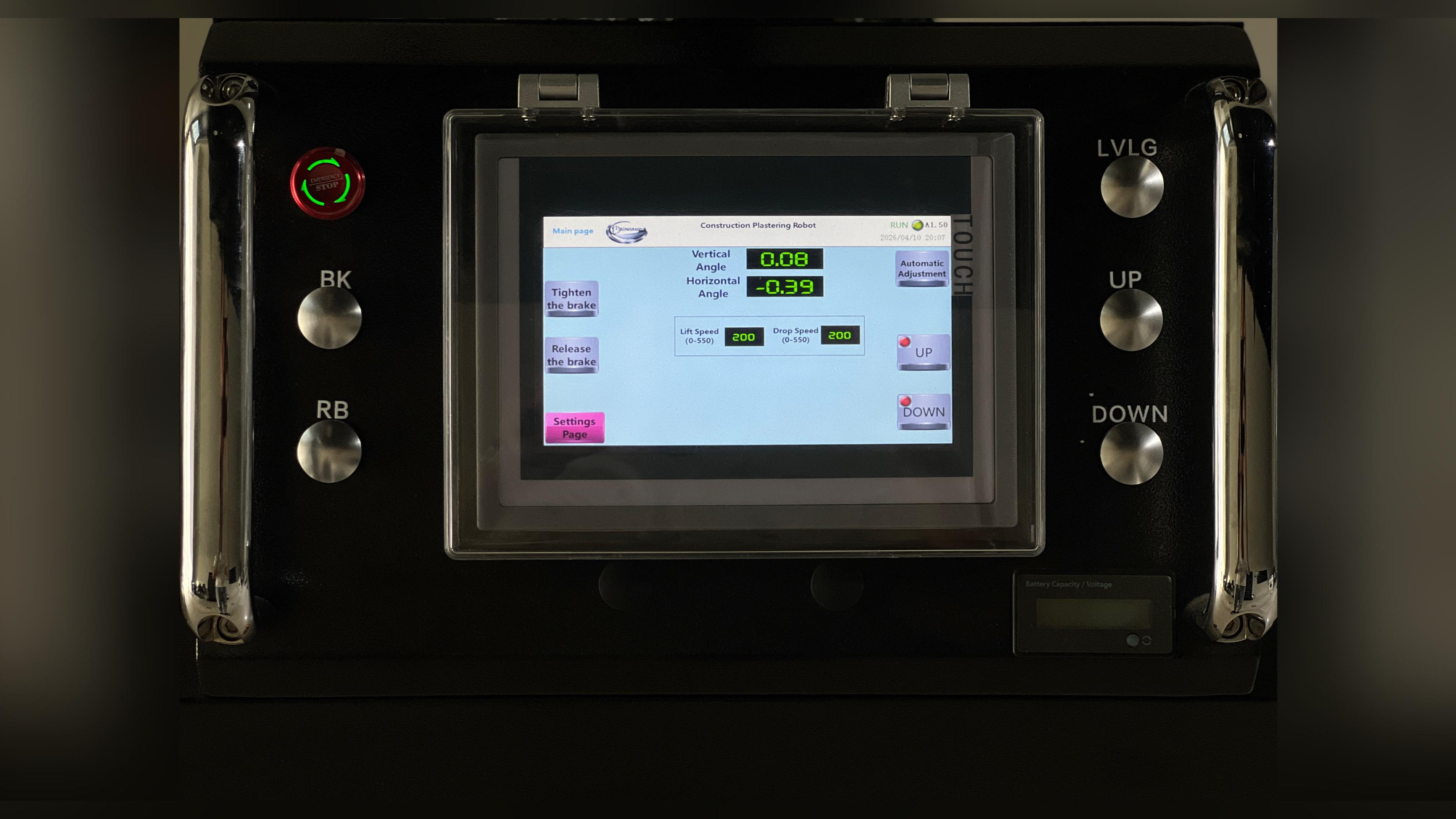

• Industrial-grade touchscreen interface
• Electric braking stabilization system
• Controlled ascent/descent precision mechanism
MECHANICAL LEVELING SYSTEM
• 1.3 m precision leveling blade system
• Reinforced scraper geometry for uniform surface compression
• Reduced vibration transfer during operation
• Maximum working height up to 4 meters
• Stable wall-contact alignment structure
WORKFLOW INTEGRATION CONCEPT
Step 1 – Spray plaster using mortar spray system
Step 2 – Position VWL400 on reference guides
Step 3 – Activate intelligent levelling mode
Step 4 – Achieve consistent vertical flatness with minimal manual correction
This workflow enables single-operator functionality, reduced manual labor intensity, faster surface completion time and improved dimensional accuracy.
INDUSTRIAL POWER CONFIGURATION
• Supply Voltage: AC180–220V / 50-60Hz / Single Phase
• Continuous electric power operation
• Modular structural frame for transport and setup
• Compatible with gypsum, cement mortar and premixed plaster systems
PERFORMANCE & SYSTEM DATA
Supply Voltage: AC180–220V / 50-60Hz / Single Phase
Lifting Motor: DC48V 0.75 kW Brushless Servo
Control System: Industrial Touchscreen Interface
Angle Adjustment: Sensor + Electric Cylinder
Braking System: Electric Stabilization Brake
Levelling Blade Length: 1.3 m
Maximum Working Height: 4 m
Mechanical Arm Size: 242 × 120 × 1645 mm
Main Unit Size: 700 × 550 × 1050 mm
Total Weight: 188 kg
