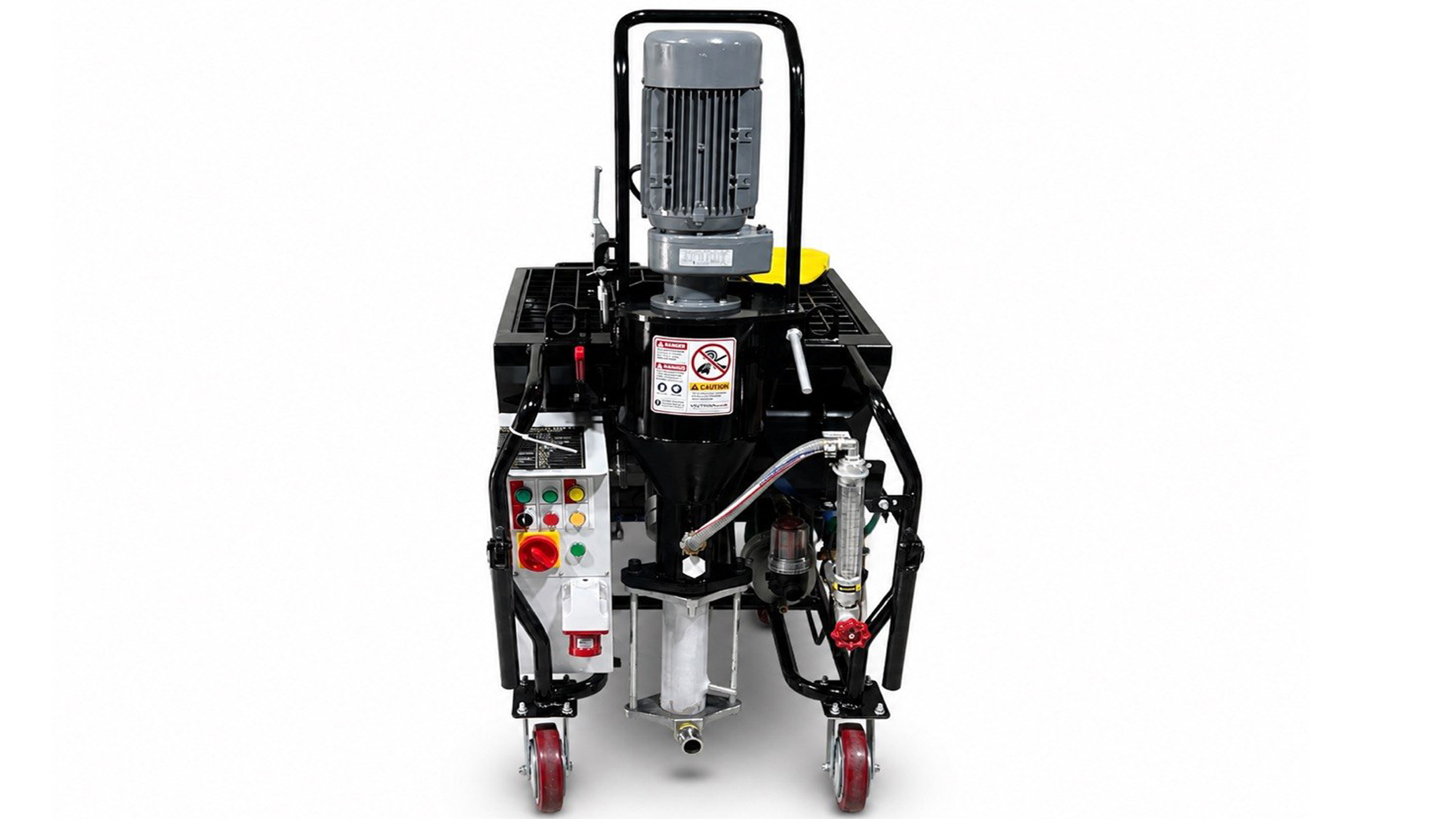

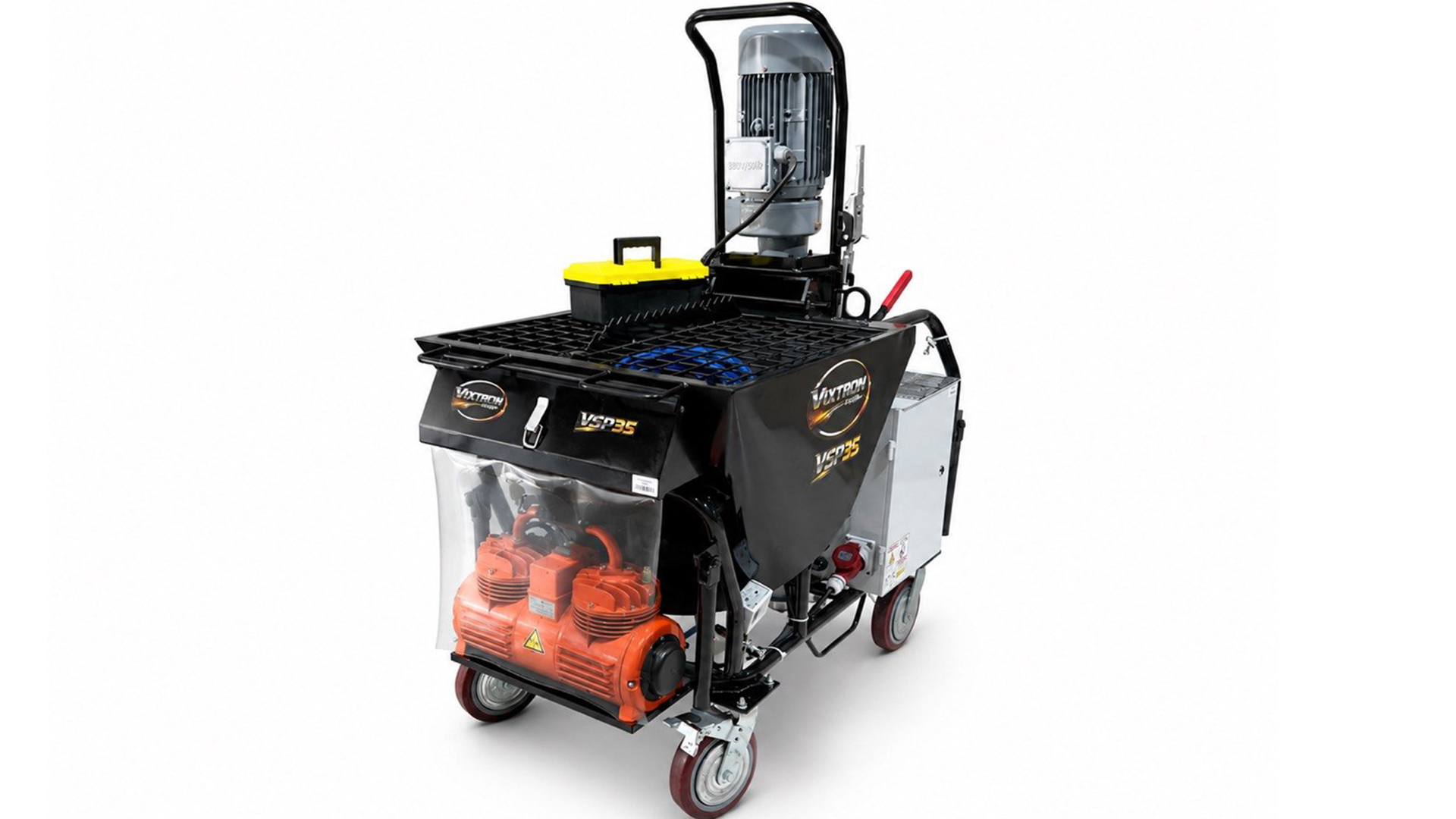

ماكينة رش البلاستر VSP35

ENGINEERED FOR CONTINUOUS INDUSTRIAL PERFORMANCE

The VIXTRONequip VSP35 is a high-capacity dry mix spray plaster system engineered for continuous operation in demanding construction environments.

Developed around a 5.5 kW SIEMENS industrial drive unit and a reinforced rotor–stator conveying system, the VSP35 delivers stable pressure output, homogeneous material blending, and consistent spray performance throughout extended working cycles.

The integrated high-efficiency water dosing system and industrial air compressor ensure precise water-to-material ratio control, stable material density, and optimized spray atomization — even under continuous heavy-duty operation.

Designed for professional contractors, the VSP35 combines industrial reliability, engineered flow dynamics, and service-accessible construction for long-term jobsite performance.

POWER & DRIVE SYSTEM

• 5.5 kW Industrial Main Drive (SIEMENS – Germany)

• Integrated 3 kW High-Flow Air Compressor – 250 L/min

• Precision Water Pump – 3.6 m³/h

• 380 V / 50–60 Hz Industrial Configuration

• Reinforced Rotor–Stator (Worm Pump) Conveying Assembly

MIXING & CONVEYING SYSTEM ARCHITECTURE

The integrated mixing chamber and rotor–stator pumping unit are engineered to ensure continuous material homogenization, stable conveying pressure under load, reduced pulsation during spraying, optimized water-to-dry mix integration, and consistent density and surface finish quality. The optimized internal material flow path minimizes pressure fluctuation and enhances operational control during long spraying cycles.

APPLICATION RANGE

• Gypsum plaster systems

• Cement plaster

• Lime-cement plaster

• Adhesive and reinforcement mortars

• Insulating plaster systems

• Decorative and textured coatings

SYSTEM POSITIONING

The VSP35 is positioned for medium to large construction projects requiring continuous dry mix spraying capability, stable output control, reliable industrial drive performance, consistent surface finish quality, and heavy-duty operational endurance.

TECHNICAL DATA SHEET

Motor:   5.5 kW (SIEMENS – Germany)

Air Compressor:   3 kW – 250 L/min

Water Pump Capacity:    3.6 m³/h

Power Supply:     380 V / 50–60 Hz

Pump Type:    Rotor–Stator (Worm Pump)

Max. Delivery Rate:   35 L/min

Max. Working Pressure:   50 bar

Max. Grain Size:   6 mm

Mixing Drum Capacity:   115 L

Horizontal Range:   40 m

Vertical Range:   20 m

Weight:   220 kg

All specifications are subject to continuous technical development and may vary according to configuration.
